| 1200 L Tank Capacity | RTK Centimeter-Level Positioning | 30–70% Pesticide Savings | ≤25° Maximum Climbing Angle |

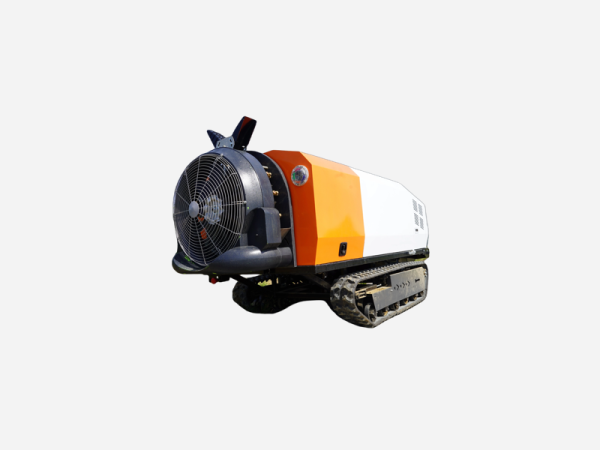

The 1200L Smart Tracked Orchard Sprayer is a self-propelled, tracked orchard plant protection machine that integrates 72V electric drive, remote control, RTK autonomous navigation, air-assisted spraying and precision variable-rate spraying technology. As a smart orchard sprayer designed for orchards, gardens, hilly terrain and greenhouses, it combines autonomous operation with ultrasonic target detection and dynamic spray control to deliver more precise, efficient crop protection — with strong adaptability across a wide range of orchard row spacing and canopy heights.
 | 1. Crawler Chassis — dual crawler tracks, 1/60 hypoid reduction gearbox 2. Air-Assisted Spray Unit — 680mm 9-blade fan, directional air duct 3. Liquid Delivery System — 1200L tank, Italian diaphragm pump 4. Precision Variable-Rate Unit — 10-channel PWM solenoid valves, ultrasonic target sensor 5. Power Supply Unit — 72V lithium battery, diesel range-extender genset 6. Smart Control Unit — H12 remote, navigation controller, variable-rate control board |
H12 Remote Control
|  |
 | Autonomous App
|
| Ultrasonic Target Detection Real-time canopy detection automatically stops spraying in gaps with no tree cover, cutting drift and ground waste while targeting only where it’s needed — a key reason this tracked orchard sprayer uses less chemical per hectare than conventional equipment. |  |
 | PWM Variable-Rate Spraying 10 independently controlled high-frequency PWM solenoid valves allocate dosage precisely by canopy density — saving 30–70% pesticide versus conventional orchard spraying methods. |
| Speed-Based Flow Adjustment Travel speed feeds directly into the spray controller — flow rate adjusts automatically so dosage per hectare stays consistent as speed changes, even on uneven or hilly ground. |  |
 | Air-Assisted Spray System 680mm 9-blade fan, 6kW motor — adjustable airflow penetrates dense canopies at any tree height, ensuring even coverage from the inner canopy to the outer leaves. |
| Dual Power System 72V LiFePO4 battery for quiet electric operation, plus a diesel range-extender genset (14.4kW rated) that recharges on the go — this orchard plant protection machine keeps working without stopping mid-field. |  |
| Tank Capacity | 1,200 L |
| Overall Dimensions | 3,220 × 1,350 × 1,680 mm |
| Machine Weight | 1,500 kg |
| Chassis | Self-propelled tracked chassis |
| Fan | 680 mm, 9-blade fan |
| Fan Motor | 72V DC brushless motor, 6 kW rated power |
| Pump | Italian imported diaphragm pump |
| Pump Motor | 72V permanent-magnet synchronous motor, 4 kW |
| Battery | 72V 105SH LiFePO₄ battery |
| Range Extender | WS2V95F diesel generator set |
| Generator Output | 72V DC, 14.4 kW rated / 16 kW peak |
| Navigation | RTK centimeter-level positioning |
| Remote Control | H12 wireless remote controller |
| Variable-Rate System | 10-channel high-frequency PWM control |
| Maximum Climbing Capability | ≤25° |
Orchard | Garden / Landscape |
Hilly Terrain | Greenhouse |
It’s a self-propelled, tracked orchard sprayer for applying pesticide and other crop protection products in orchards, gardens, hilly terrain and greenhouses, combining autonomous navigation with air-assisted, variable-rate spraying.
Using the H12 remote or the autonomous app, you map the field boundary, set working width and speed, and the system auto-generates a spray path with RTK centimeter-level positioning. Once deployed, the machine switches to autonomous mode and the variable-rate system starts automatically.
Up to 30–70% less pesticide compared to conventional spraying, thanks to ultrasonic target detection (which stops spraying in canopy gaps) combined with 10-channel PWM variable-rate control that matches dosage to canopy density.
Yes. The dual-track self-propelled chassis is built for hilly terrain, with a maximum climbing angle of ≤25°.
A dual power system: a 72V LiFePO4 battery for quiet electric operation, plus a diesel range-extender genset (14.4kW rated / 16kW peak) that recharges the battery on the go, so the machine doesn’t need to stop mid-field to recharge.
The H12 remote control has an effective range of up to 200m. For larger orchards, the autonomous app supports remote progress monitoring over a wider area.
1-year warranty. Any hardware failure within 1 year is covered with free replacement parts, and software issues are resolved remotely online.
Yes, Agma-Toyar offers OEM/ODM services with customized solutions tailored to different markets and requirements.
The 1200L Smart Tracked Orchard Sprayer is CE, ISO and SGS certified, meeting international safety and quality standards for agricultural machinery exported to Europe and other regulated markets.
Yes. Agma-Toyar provides remote onboarding guidance for setup and operation, along with after-sales technical support — contact our team to arrange support for your specific orchard conditions.
