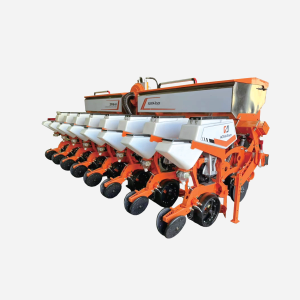

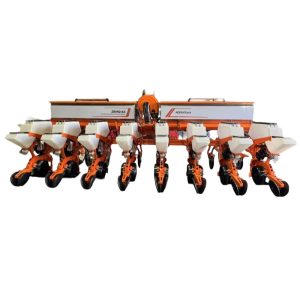

AGMA-Toyar 2BMQ Series Pneumatic Precision Seeder for No-Till Farming

This product has a range of 4 to 8 rows. It is a new generation of no-till seeding machinery for conservation tillage technology. It is mainly suitable for no-till seeding between flat rows with full corn straw cover or root stubble cover, no-till seeding on ridges, no-till seeding on the sides of wide and narrow rows, and conventional seeding.

Product Overview

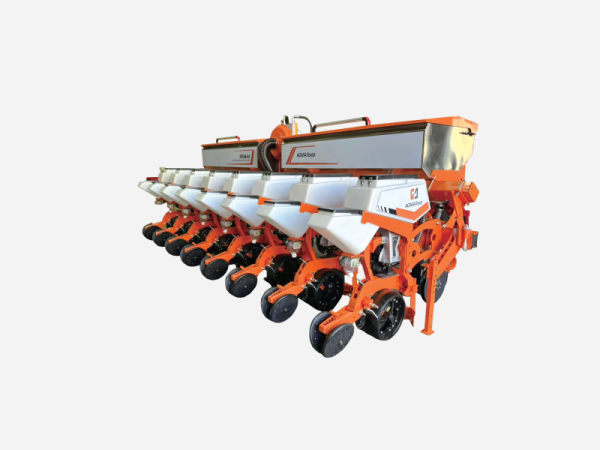

The 2BMQ Series No-Till Grain Drill is a next-generation smart seeding solution designed specifically for conservation tillage. It integrates three core technologies: independent hydraulic drive, precision seeding, and intelligent monitoring. The machine is ideal for full-residue fields, enabling single-seed precision planting, fertilizer application, and soil compaction in one pass. With a maximum seeding speed of 12 km/h and a seeding accuracy over 95%, the 2BMQ no till grain drill boosts efficiency and supports modern large-scale farming.





Infinitely Adjustable Plant SpacingMulti-Crop CapabilitySmart AlarmsAutomatic Air Pressure Stabilization
Large-Capacity Fertilizer TankFull-View MonitoringReal-Time Data DisplayHigh-Speed Operation



Product Features

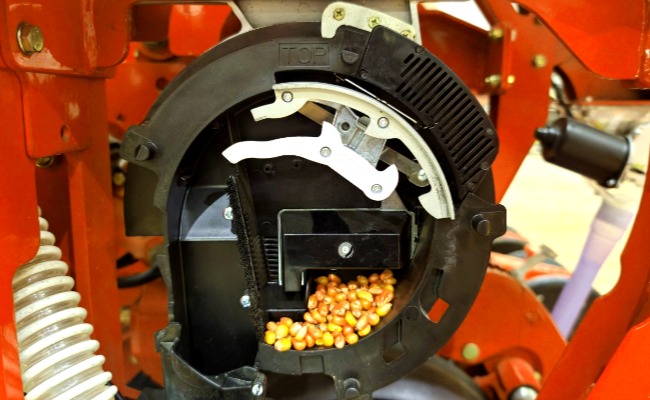

Independent Hydraulic Drive for Stable Airflow

The 2BMQ no till grain drills use a dedicated hydraulic station to drive the fan, ensuring stable air pressure. Hydraulic hose connections eliminate height limitations during headland turns, avoiding speed drops and seed loss caused by mechanical drives.

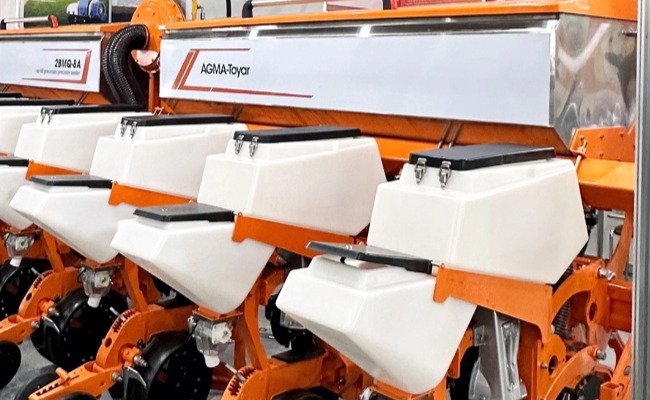

Compact and Easy Hitching

Designed with a compact structure and forward-leaning fertilizer box, the 2BMQ no till grain drill reduces tractor lifting requirements, saving at least 20 horsepower. One person can quickly mount the grain drill no till machine without additional tools.

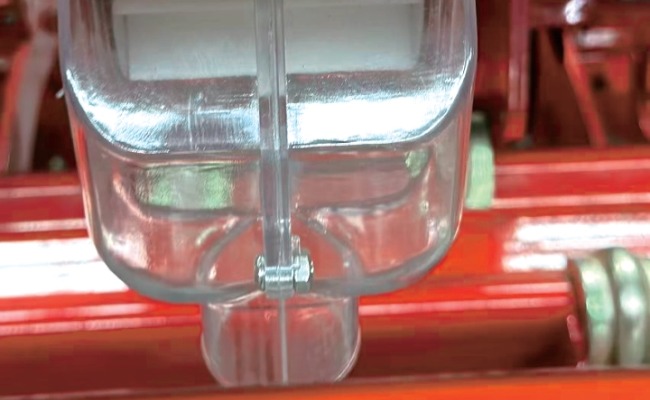

One-Touch Seed Charging

One-key seed loading ensures no seed gaps at the start of the field. The 2BMQ no till grain drill also supports quick seed checking and unloading to improve working efficiency.

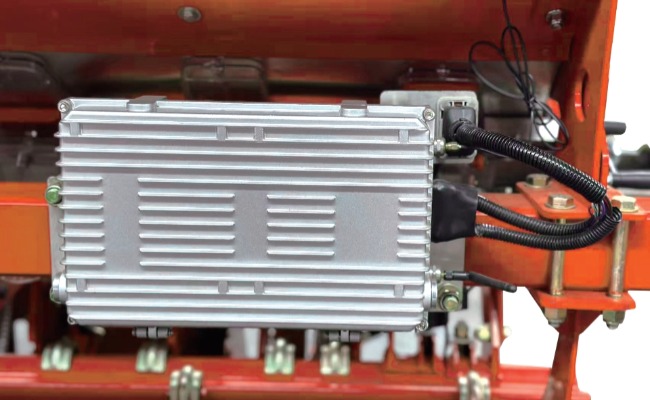

Fast Seeding to Save Time

With an electric-driven pneumatic seeder, the 2BMQ no till grain drill achieves working speeds up to 12 km/h, helping farmers finish planting faster during busy seasons.

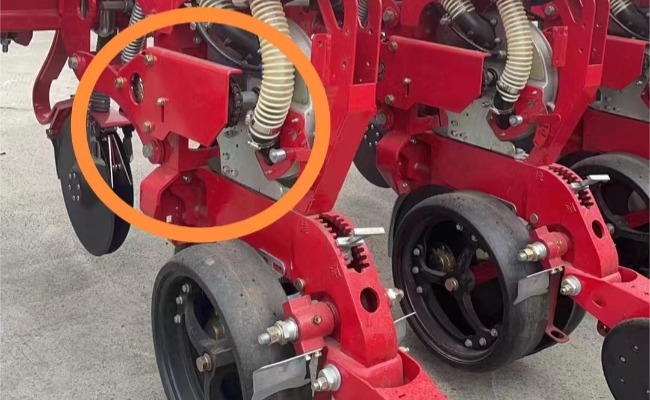

Precise Row Spacing for High Yields

The no till grain drill synchronizes seeder speed with travel speed in real time, ensuring consistent planting distance regardless of speed fluctuations. Each row is independently controlled, supporting intercropping and mixed seeding for diverse planting needs.

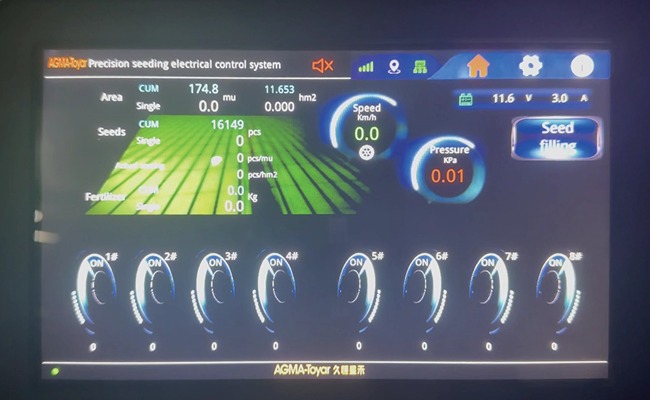

Full-Range Smart Monitoring

Operators can view real-time geographic data, speed, seeding area, and planting accuracy for each row through the system. Grain drill no till users can manage operations precisely without relying on experience.

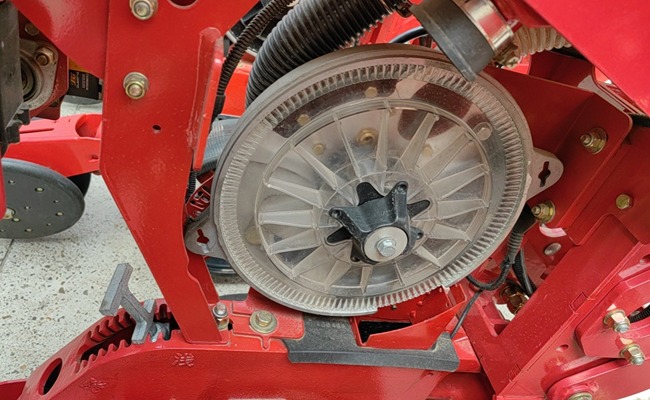

Intelligent Alerts to Ensure Quality

Equipped with loud voice alerts and flashing interface warnings, the 2BMQ Series no till grain drills detect and report anomalies in real time, preventing planting loss.

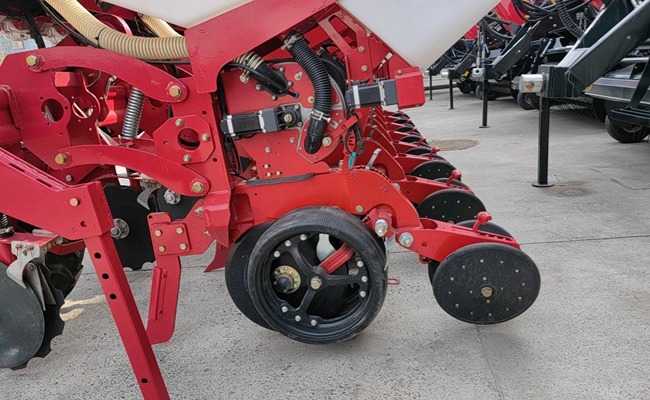

Remote Monitoring for Large-Scale Management

Through the mobile app, users can monitor multiple air seeder machines in real-time, making large farm management more efficient and systematic.



Product Parameters



Models/Part Name2BMQ-4A2BMQ-5A2BMQ-6A2BMQ-7A2BMQ-8A2BMQ-9A
Lines of work (lines)456789
Row spacing (cm)35-65
Total length of beam (m)33.254.24.855.56.15
Number of fertilizer tanks222222
Individual fertilizer tank volume (L)350350/500500500/350/350350350/350/500/350
Individual seed box volume (L)45
Volume of a single fertilizer tank (L)15
Seed dispenser TypeAir Blown Anti-Static Vertical Disc / Air Suction Type
Seed dispenserCornucopia
Seed Discharger Drive TypeElectric drive
Operating speed (Km/h)8-12
Maximum operating efficiency (acres/hour)32-4040-5048-6056-7064-8072-90
Matching power (hp))≥99≥100≥120≥150≥180≥180
Power output shaft speed (r/min)540/650
Fan drive typeHydraulic
Hook-up typeHanging
Intelligent monitoringSeed leakage monitoring



FAQ



Q1: What hardware will customers receive?

Customers purchasing the 2BMQ Series no till grain drill will receive the main unit, a display screen, spare parts (with a list), and consumable parts (with a list).



Q2: What tractor horsepower is required?

The 2BMQ Series grain drill no till weighs about 2.7 tons. Fully loaded with seeds and fertilizer, it approaches 4 tons. A tractor with at least 210 horsepower and a 4-ton lift capacity is needed for proper operation.



Q3: How many connection ports does the machine have?

The 2BMQ no till grain drills have one connection for the display control cable, one for the monitoring system, one for the hydraulic pump drive shaft, and standard three-point hitch connections. A video guide will be provided for easy setup.



Q4: How to hitch the seeder to the tractor?

The 2BMQ Series no till grain drill is designed for easy hitching. A detailed video tutorial will be provided, showing step-by-step mounting and adjustment procedures.



Q5: How is after-sales support provided?

In case of issues with the 2BMQ no till grain drill, customers can contact their sales representative. Based on the situation, technical support videos will be recorded and sent to help solve the problem quickly.



Q6: How to use the control software?

We provide a complete video guide for operating the software of the 2BMQ Series no till grain drill. The video explains all functions clearly, helping users master the system easily and efficiently.
