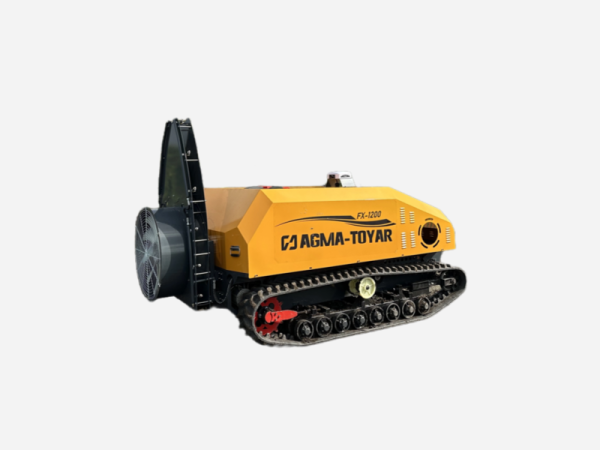

The FX-1200 is a high-performance tracked orchard sprayer designed for efficient plant protection in wide-row orchards. Powered by a 22kW range extender system, it supports fully autonomous operation with ±3cm accuracy, enabled by dual RTK and inertial navigation.
Its advanced air-assisted ultra-high-pressure spray system delivers fine droplets (100μm) with a reach of up to 10 meters, saving up to 50% on water and chemicals. With a 1200L tank and up to 100 mu (6.7 ha) daily coverage, the FX-1200 offers outstanding productivity, precision, and terrain adaptability.
 |  |  |
±3cm RTK Accuracy | 100μm Fine Atomization | 22kW Hybrid Power |
 |  |  |
| Tracked Chassis 30° Climbing | Remote Monitoring & Control | Covers 6.7 ha/day |
Large Tank, High EfficiencyThe FX-1200 orchard sprayer is equipped with a 1200L high-capacity tank, allowing one refill to cover up to 6.7 hectares per day. This makes it ideal for large orchards, vineyards, and commercial farms that require efficient and continuous spraying. |  |
 | 3cm Autonomous PrecisionWith dual RTK modules, an inertial navigation system, and an advanced NCU algorithm, the FX-1200 tracked orchard sprayer achieves ±3cm precision. This autonomous spraying function reduces overlaps and missed spots, ensuring precise plant protection in wide-row orchards. |
Air-Assisted Ultra-Fine SprayThe machine uses a 25MPa ultra-high-pressure pump combined with a 30m/s air-assisted system. This generates ultra-fine droplets as small as 100μm, achieving a spray width of up to 10 meters. Compared to traditional orchard sprayers, it saves up to 50% of water and chemicals while providing deeper canopy penetration. |  |
Powerful Hybrid SystemPowered by a 22kW gasoline range extender and dual drive motors, the FX-1200 orchard sprayer delivers strong climbing ability and long operating hours. It easily handles slopes of up to 30°, making it suitable for hilly terrain and sloped orchards. | |
Tracked Chassis, Superior StabilityThe FX-1200 uses a robust tracked chassis with 17cm ground clearance, ensuring stable movement on muddy, uneven, or sloped ground. Compared with wheeled sprayers, it offers higher stability and better adaptability for challenging orchard environments. |  |
 | Smart Control & Remote MonitoringEquipped with the MK15 remote controller and a real-time image transmission system, the FX-1200 orchard sprayer provides visualized remote management. Operators can monitor spraying performance and control the machine intelligently, improving both safety and efficiency. |
Item | Specification | Details |
|---|---|---|
| Dimensions (L × W × H) | 2850 × 1400 × 1850 mm | Compact integrated structure |
| Machine Weight (Unloaded) | 900 kg | Stable and robust design |
| Power Type | Gasoline Range Extender | 48V + 92# gasoline |
| Generator Rated Power | 22 kW | High-efficiency power output |
| Drive Motor Power | 2 kW × 2 | Dual motor drive system |
| Pump Motor Power | 3 kW × 2 | High-pressure spraying support |
| Fuel Tank Capacity | 30 L | Long continuous operation |
| Maximum Walking Speed | 1.25 m/s | Efficient field movement |
| Maximum Climbing Gradient | 30° | Strong slope climbing ability |
| Maximum Operating Gradient | 15° | Safe and stable operation |
| Medicine Tank Volume | 1200 L | Large-capacity chemical tank |
| Spraying Mode | Ultra-high pressure + Air delivery | 25 MPa + 30 m/s |
| Operation Modes | Manual & Fully Autonomous | Flexible control options |
| Atomization Particle Size | 100–200 μm | Uniform and efficient spraying |
| Spray Width | ≥ 10 m | Wide coverage per pass |
| Remote Control Model | MK15 | Reliable long-distance control |
| Autonomous Operation Precision | 3 cm | High-precision navigation |
| Ground Clearance | 170 mm | Suitable for uneven terrain |
| Number of Nozzles | 10 | Consistent spray distribution |
The FX-1200 is designed for plant protection in orchards, vineyards, and other wide-row plantations. It is ideal for large-scale spraying in hilly terrain, sloped orchards, and standardized orchards requiring high efficiency and precision.
Yes. The FX-1200 is a fully autonomous orchard sprayer. It uses dual RTK positioning, an inertial navigation system, and advanced NCU control algorithms to achieve ±3cm autonomous operation accuracy.
Compared with conventional wheeled or manually operated orchard sprayers, the FX-1200 offers:
With a 1200L tank, the FX-1200 orchard sprayer can cover up to 6.7 hectares per day, depending on crop type, spraying mode, and orchard layout. This significantly improves productivity compared to traditional sprayers.
The FX-1200 tracked orchard sprayer is designed for complex terrain, including muddy ground, uneven surfaces, and slopes up to 30°. The tracked chassis provides superior traction and stability compared to wheeled machines.
The FX-1200 uses an ultra-high-pressure spray system (25MPa) combined with air-assisted airflow (30m/s). This produces fine droplets as small as 100μm, with a spray range of up to 10 meters, ensuring deep canopy penetration.
Yes. Thanks to precise RTK guidance and ultra-fine atomization, the FX-1200 can reduce water and pesticide usage by approximately 50%, making it a more sustainable orchard spraying solution.
The FX-1200 is powered by a 22kW gasoline range extender hybrid system, combined with electric drive motors. This hybrid design provides strong power, long operating time, and reliable performance in demanding orchard environments.
Yes. The FX-1200 orchard sprayer supports remote control via the MK15 controller and real-time image transmission. Operators can monitor spraying operations remotely, improving safety and operational visibility.
Absolutely. The FX-1200 is suitable for orchards, vineyards, fruit plantations, and other specialty crops with wide row spacing. Its precise spraying and adjustable spray parameters make it adaptable to different crop types.
Basic training is recommended. The FX-1200 is designed with an intuitive control interface, and autonomous operation significantly reduces operator workload compared to traditional orchard sprayers.
Yes. Spray parameters, operation modes, and certain configurations can be adjusted based on orchard layout, crop height, and local operating conditions.
