Providing advanced agricultural machinery and equipment at the forefront of innovation, our customers benefit from reduced work stress and increased productivity, resulting in higher yields and sustainable growth and profitability.

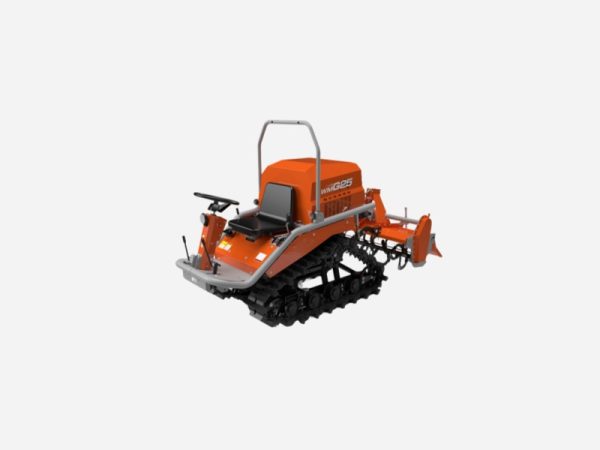

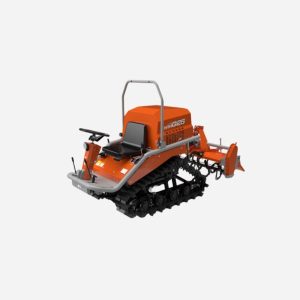

The G25 Crawler Tiller is engineered for the most demanding agricultural environments. Whether you are navigating muddy paddy fields, steep hillside terraces, or narrow orchard rows, the G25 delivers unmatched traction and stability. Combining the power of a tractor with the agility of a compact machine, it is the ideal solution for modern small-to-medium scale farming.
The G25 tracked tiller supports both walking mode and riding mode, ensuring safer control across complex terrain.
This dual-mode design significantly improves operator safety and adaptability.
Despite its strong performance, the G25 remains lightweight and compact.
Perfect for orchards, greenhouses, and small plots where space is limited.
The G25 crawler tiller is equipped with a reliable independent transmission system.
One machine can easily adapt to multiple field tasks.
The G25 is designed as a multi-purpose tracked agricultural machine.
With the right attachment, one G25 can handle most seasonal farming operations.
The offset transmission rotary tiller ensures efficient soil preparation.
Ideal for both paddy fields and dry farmland.
The G25 is the “Swiss Army Knife” of farming machinery, proven effective in:
Orchards & Vineyards: Citrus, apple, grape, and dragon fruit rows.
Paddy & Dry Fields: Reliable performance in deep mud or hard clay.
Hilly & Mountainous Areas: Terraced farms where stability is critical.
Greenhouses & Vegetable Farms: Compact size for indoor maneuvering.
| Item | WMG15 (1GZL-100) | WMG25 (1GZL-120) |
| Engine Model | WM1100F air-cooled diesel | WM2V95FE air-cooled diesel |
| Rated Power | 9.2 kW | 18 kW |
| Weight (with rotary tiller) | 640 kg | 720 kg |
| Dimensions (with rotary tiller) | 2850×1150×1280 mm | 2850×1350×1340 mm |
| Track Type | Triangle track | Triangle track |
| Track Width | 250 mm | 250 mm |
| Track Lug Type | Straight lug | Straight lug |
| Track Gauge | 700 mm | 700 mm |
| Overall Track Width | 1000 mm | 1000 mm |
| Ground Clearance | 350 mm | 350 mm |
| Gear Range | 6F / 2R (3F1R × 2) | 6F / 2R (3F1R × 2) |
| Steering | Steering wheel | Steering wheel |
| Service Brake | Yes | Yes |
| Parking Brake | Yes | Yes |
| Linkage Type | 3-point linkage | 3-point linkage |
| PTO Specification | 35mm, 6-spline | 35mm, 6-spline |
| PTO Speed / Direction | 540 rpm, clockwise | 540 rpm, clockwise |
| Rotary Tiller Width (Standard) | 1000 mm | 1200 mm |
| Rotary Tiller Drive (Standard) | Side chain | Side gear |
| Blade Rotor Radius | 195 mm | 195 mm |
Yes. The crawler track system provides strong traction and stability, making it suitable for hills, terraces, soft soil, and muddy fields.
Yes. The G25 comes standard with a 1.0 m (WMG15) or 1.2 m (WMG25) rotary tiller.

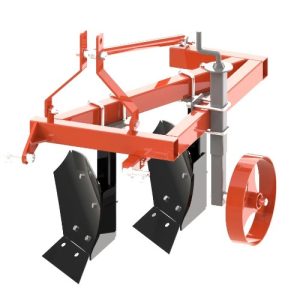

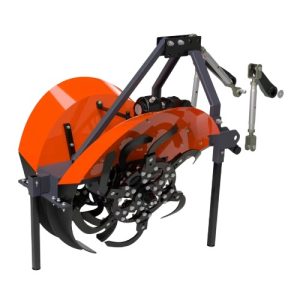

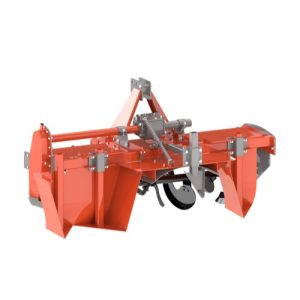

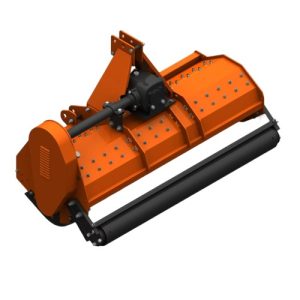

The G25 supports rotary tillers, ditchers, ridgers, ploughs, and straw shredders.
Yes. With an overall track width of only 1 meter, it is ideal for narrow orchard rows and small plots.
Yes. OEM customization is available, including color, logo, track width, implement size, and configuration options.
The offset transmission design reduces load and fuel consumption. Actual fuel usage depends on soil conditions and working intensity.
The 195 mm blade rotor radius ensures stable and uniform tilling depth.
Yes. The dual-mode design improves safety and flexibility on slopes and complex terrain.
Whether you need a single unit for a family farm or a fleet for a plantation, the G25 Tracked Rotary Tiller is the reliable choice.
