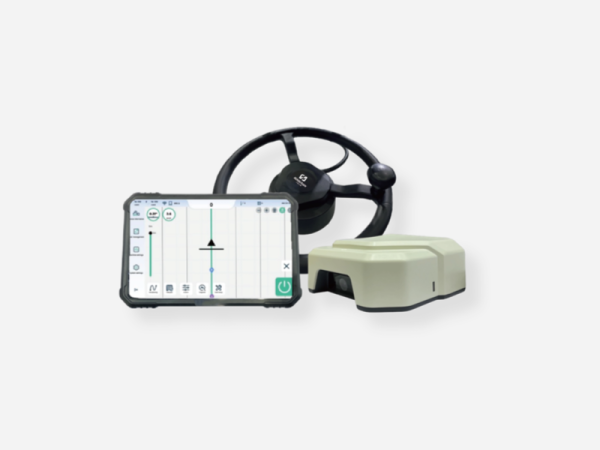

The JAG210 PRO and JAG213 PRO are advanced all-in-one GNSS auto steering systems designed to improve accuracy, efficiency, and operational stability for agricultural machinery.
By integrating high-precision GNSS positioning, intelligent navigation algorithms, wireless communication, and expandable control interfaces into a single platform, the JAG PRO series delivers RTK-level performance with simpler installation and long-term upgrade capability.
 |  |  |  |  |
| Combined navigation | Auto U-turn integrated | Anti-interference | OTA and CORS services | L-band Communication |
 |  |  |  |  |
| SBAS | Radio communication | Task sharing | Hydraulic steering | Breakpoint endurance |
The JAG210 PRO features a 10-inch high-visibility display, while the JAG213 PRO is equipped with a larger 13-inch display.
Both screens are optimized for clear readability of navigation data and operational information under bright sunlight and demanding field conditions.
Multiple display size options allow users to select the most suitable configuration based on cab space, visibility requirements, and operating preferences, improving comfort and operational efficiency in precision agriculture.
A dedicated 9-pin expansion interface enables seamless integration with additional control modules, such as hydraulic steering systems.
This expandable design allows the GNSS auto steering system to adapt to evolving agricultural technologies, ensuring long-term flexibility for advanced farming applications and agricultural automation projects.
For regions with limited or unreliable CORS network coverage, such as remote rural areas or large-scale farmland, the integrated LoRa radio module provides a critical advantage.
It enables stable, independent wireless communication between machines in the field, ensuring consistent guidance accuracy and supporting multi-machine coordinated operations—without relying on unstable cellular networks.
Through the dedicated 9-pin interface, the system supports fully customizable and scalable expansion modules.
This modular architecture allows the auto steering system to be tailored to specific agricultural workflows, machinery types, and operational requirements, making it suitable for a wide range of precision agriculture scenarios.
The JAG PRO series features reserved camera mounting positions and compatible hardware interfaces, preparing the system for future vision-based navigation upgrades.
This design enables seamless integration with cameras used for obstacle detection, crop row recognition, and visual-assisted guidance, protecting your initial investment while supporting long-term upgrades in agricultural automation.
Both models are built with an IP67-rated dustproof and waterproof enclosure, a wide operating temperature range, and reinforced protective structures.
This rugged agricultural-grade design ensures reliable operation in rain, dust, vibration, and extreme temperatures, making the system dependable for real-world farming environments.
| Feature | Specification |
| GNSS | GPS / BDS / GLONASS / GALILEO / QZSS / SBAS / L-Band |
| RTK Accuracy | ±2.5 cm |
| Update Rate | 20 Hz (100 Hz after fusion) |
| Communication | CAT1, UHF 410–470 MHz, LoRa, BT5.1 |
| Interfaces | RS232 ×2, CAN ×1, 9-Pin Extension |
| Protection | IP67 |
| Feature | Specification |
| Diameter | 170 mm, aluminum alloy |
| Torque | 5 N·m rated / 12 N·m max |
| Speed | 100–250 rpm |
| Protection | IP65 |
| Durability | Vibration & durability tested to military standards |
| Feature | DT10 | DT13 |
| Screen | 10.1″ HD | 13″, 1920×1200 |
| OS | Android 8.1 | Android 14 |
| Memory | 2GB RAM + 16GB ROM | 4GB RAM + 64GB ROM |
| Interfaces | RS232, CAN, Camera inputs | RS232, CAN, Camera inputs, RJ45 |
| Communication | 4G / WiFi / Bluetooth | 4G / WiFi / Bluetooth |
| Protection | IP67, 1.5 m drop resistance | IP67, 1.5 m drop resistance |
| Special | – | 360° panoramic support |
 |  | |
| Sowing | Ditching | Laying film |
|  |
|
| Rice Planting | Ridging | Spraying |
Yes. The JAG210/213 PRO auto steering system is compatible with most tractor brands and models.
Yes. The JAG PRO GNSS auto steering system supports Radio RTK and Satellite L-Band, enabling fully offline operation.
Signal connection options depending on location and accuracy needs:
No additional cost
Directly supported by the system
Convergence: 20–40 min
Accuracy: 5–10 cm
Ideal for basic precision agriculture operations
Requires local CORS coverage
Connect using your NTRIP account
Accuracy: ±2.5 cm
Fast convergence and high stability
Best for professional farming requiring maximum precision
Purchase our RTK base station for full independence
Coverage: 3–5 km radius
Accuracy: ±2.5 cm
Fully independent, no internet required
Ideal for remote or large-scale farms
Dry fields: ±2.5 cm
Paddy fields: ±5 cm
Accuracy remains stable even at higher speeds or rough terrain.
Using E6-HAS free satellite mode, accuracy varies from 5–10 cm depending on environment.
Yes. Installation is plug & play, and most users finish within 1 hour.
Complete installation videos
Step-by-step manuals
Online technical support
Most farmers can install the JAG PRO auto steering system without a technician.
Yes. The integrated Auto U-turn function reduces operator fatigue and improves efficiency in precision agriculture.
CORS / NTRIP Network
UHF Radio RTK
L-Band Satellite Correction
Free Satellite E6-HAS mode
This ensures stable GNSS auto steering performance regardless of location or internet availability.
Yes. The 9-pin expansion interface supports:
Hydraulic steering valves
Angle sensors
Future control modules
The system is fully future-proof for evolving agricultural automation needs.
Yes. Thanks to enhanced anti-interference algorithms and combined GNSS navigation, the system performs reliably in:
Hilly and uneven terrain
Forest edges
High-electromagnetic environments
Remote farmlands
Absolutely. The JAG210/213 PRO is built for heavy-duty agricultural use:
IP67 waterproof & dustproof
Wide temperature tolerance
Shock and vibration tested
Reliable performance in extreme environments
We offer full technical support for our auto steering system:
Online assistance
Remote diagnostics
Installation and calibration guidance
OEM/ODM support if needed
Our engineering team ensures smooth, trouble-free operation.
